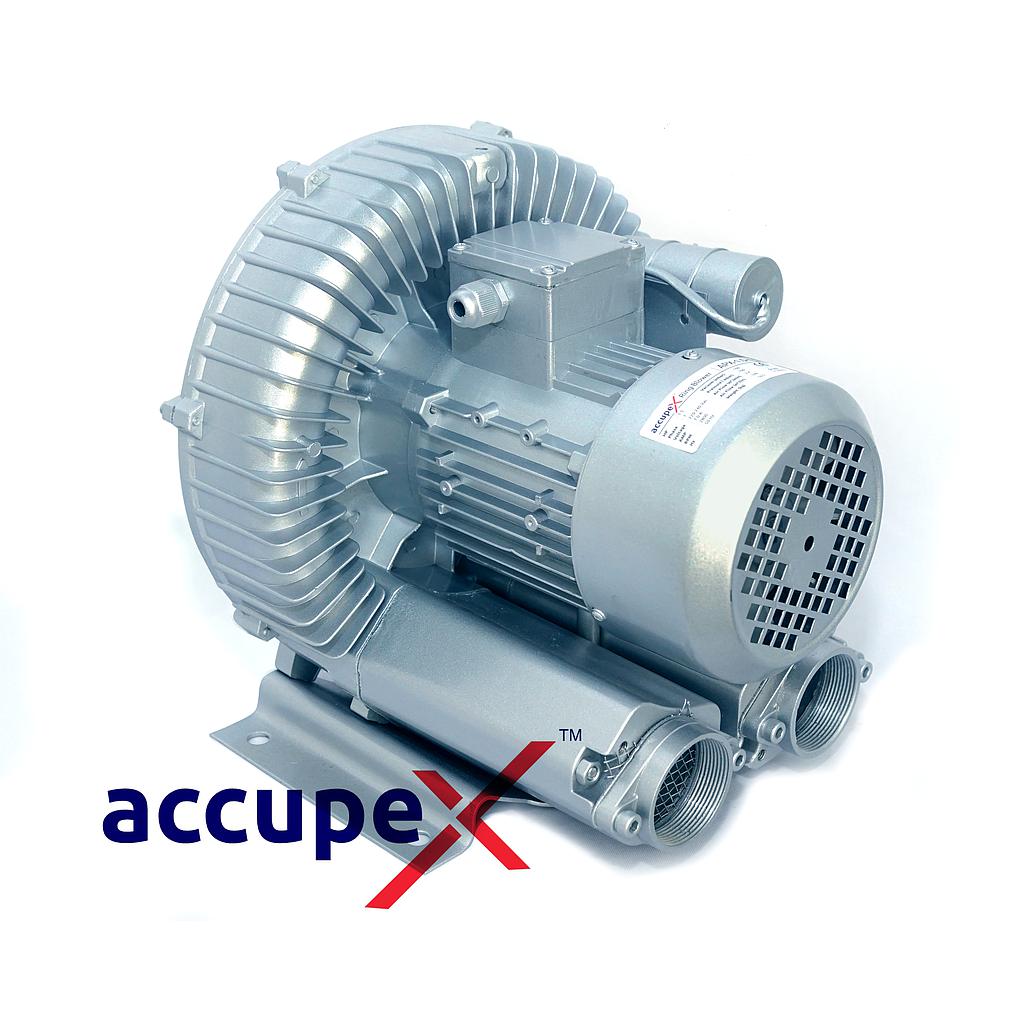

APX-0.25-3(0.25HP/3PH/Single Stage)
0.25HP-3PH-RING BLOWER
Specifications for APX-0.25-3(0.25HP/3PH/Single Stage)
| KW | 0.18 KW |
| HP | 0.25 HP |
| Phase | Three Phase |
| m3/min | 0.8 |
| cfm | 28 cfm |
| m3/hr | 48 |
| Pressure ( bar) | 60bar |
| Motor Voltage ( V ) | 346~415 V |
| Frequency (Hz) | 50 Hz |
| Sound ( db ) | 52 db |
| Weight ( Kg ) | 6.5 Kg |
| Outlet Dia ( inch) | 1" |
| Current ( Amp ) | 0.69 Amp |
| Vacuum (mbar ) | 50 mbar |
| LPM | 800 |
| Stage | Single Stage |
