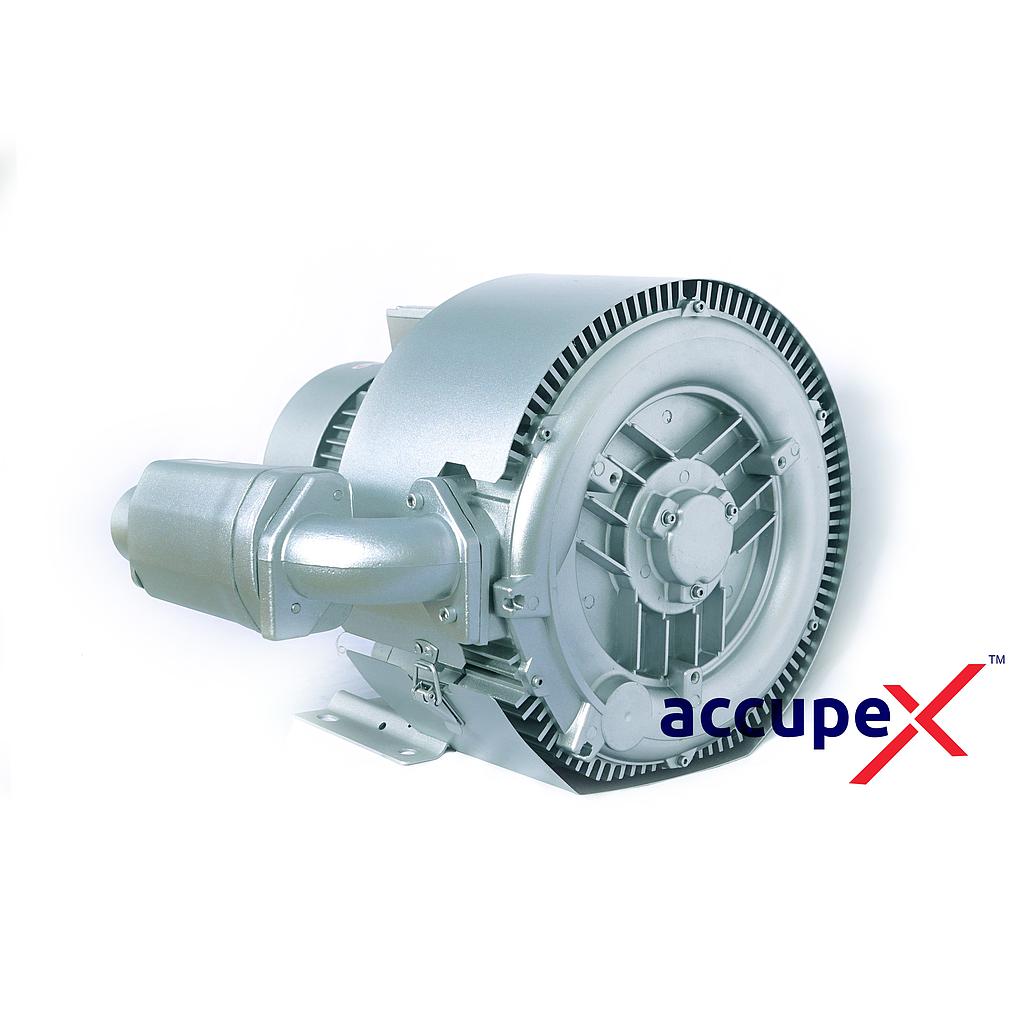

EHS-6375 (7.5Kw/3ph/415v/50Hz) Double Stage
10HP-3PH-TWO STAGE RING BLOWER
Specifications for EHS-6375 (7.5Kw/3ph/415v/50Hz) Double Stage
| KW | 7.5 KW |
| HP | 10 HP |
| Phase | Three Phase |
| m3/min | 5.2 |
| cfm | 183 cfm |
| m3/hr | 312 |
| Pressure ( bar) | 580bar |
| Motor Voltage ( V ) | 346~415 V |
| Frequency (Hz) | 50 Hz |
| Sound ( db ) | 75 db |
| Weight ( Kg ) | 80.5 Kg |
| Outlet Dia ( inch) | 2" |
| Current ( Amp ) | 15.6 Amp |
| Vacuum (mbar ) | 420 mbar |
| LPM | 5200 |
| Stage | Double Stage |
